Model Whirlpool 1353^1A GAS RANGE – Common Parts & Diagrams
02 - SECTION

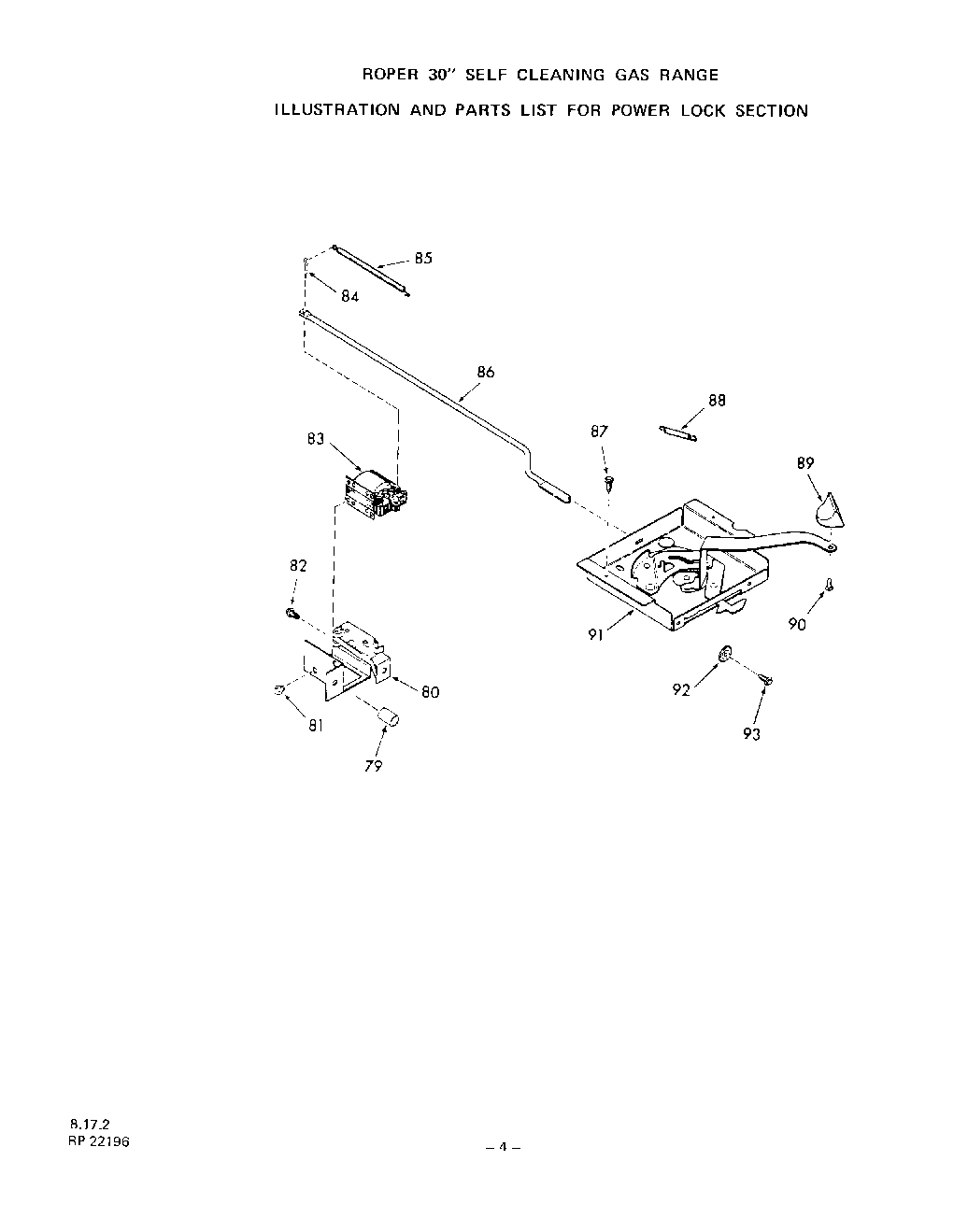

04 - POWER LOCK

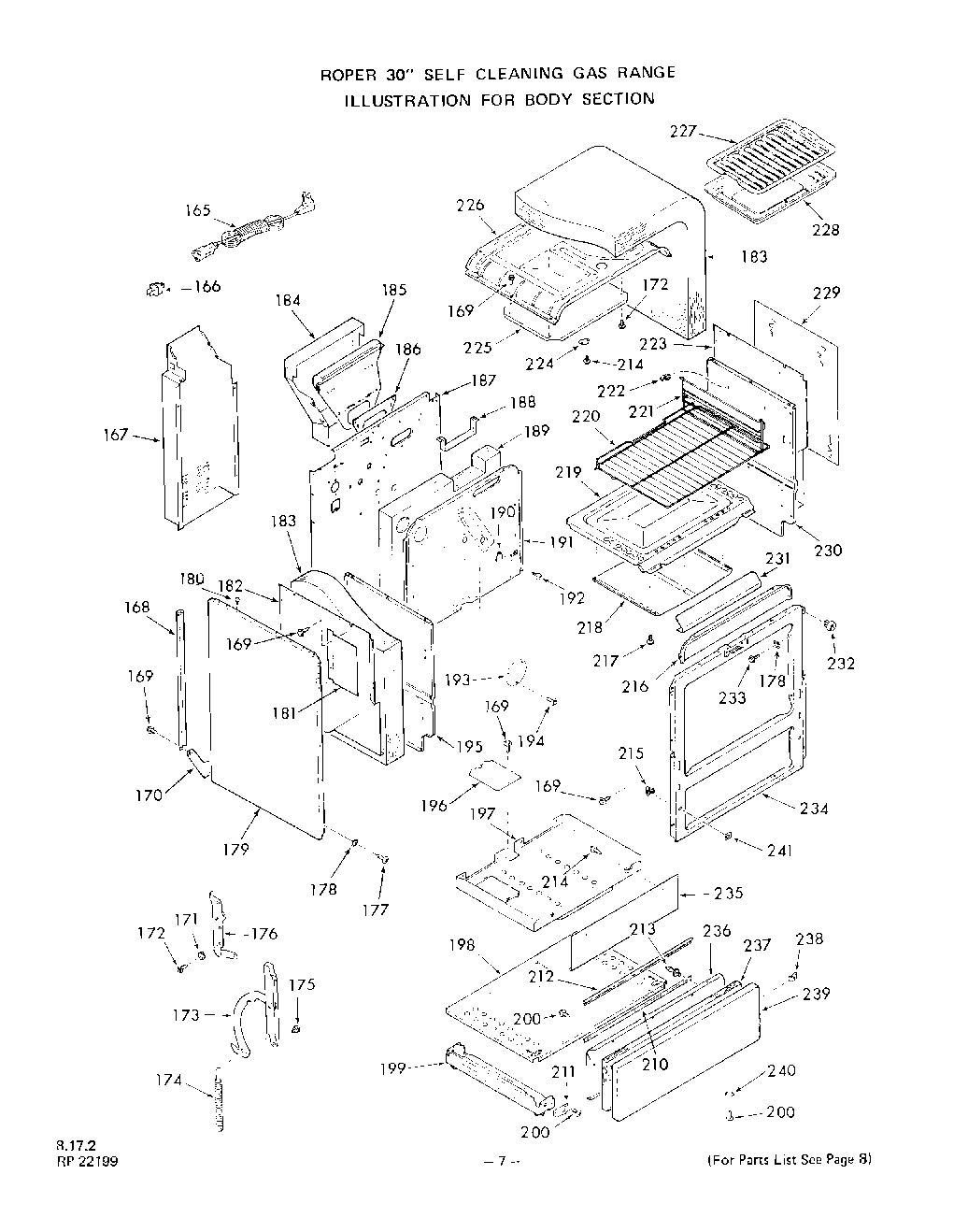

06 - BODY
08 - ROTISSERIE , GRIDDLE

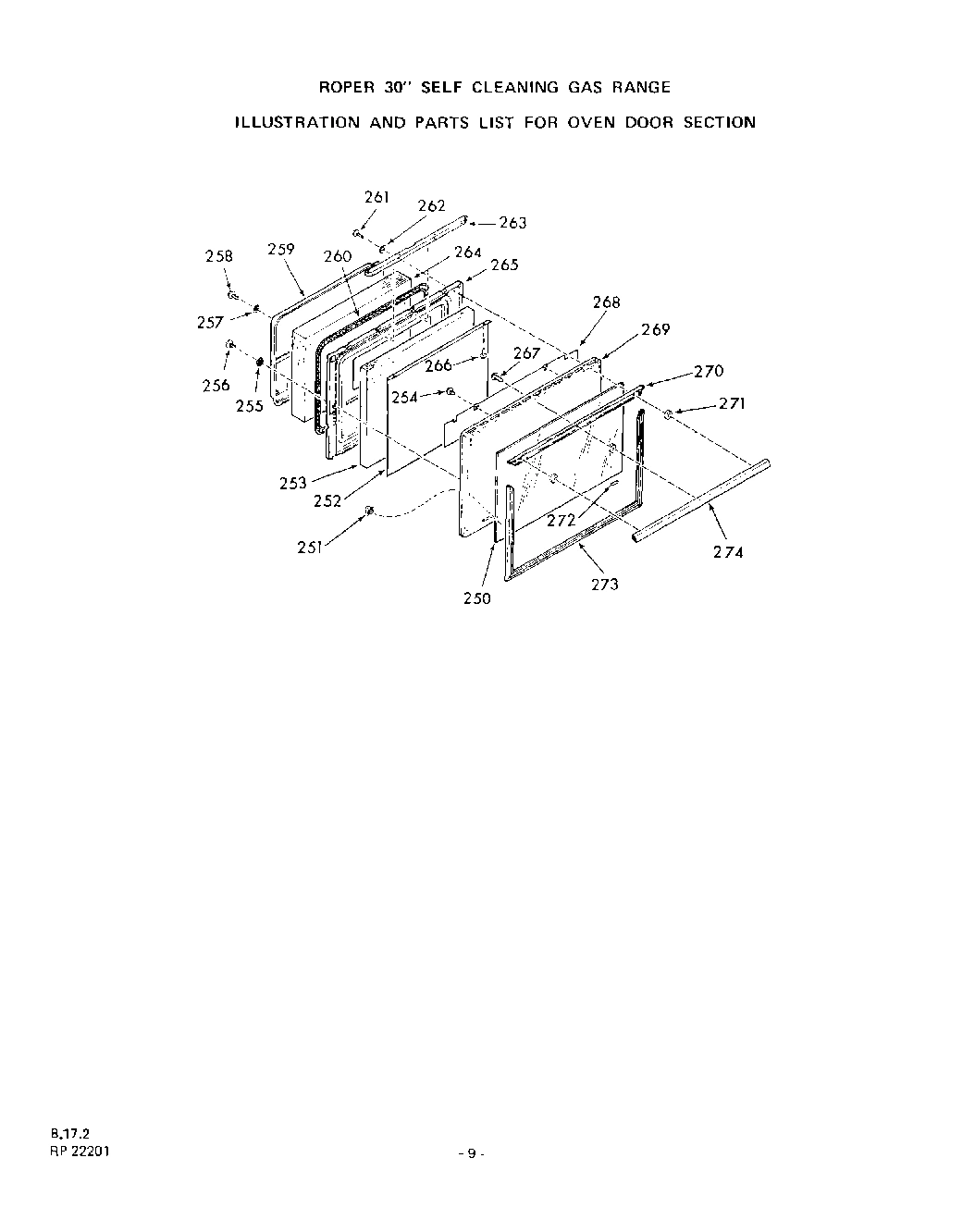

07 - OVEN DOOR
10 - SECTION

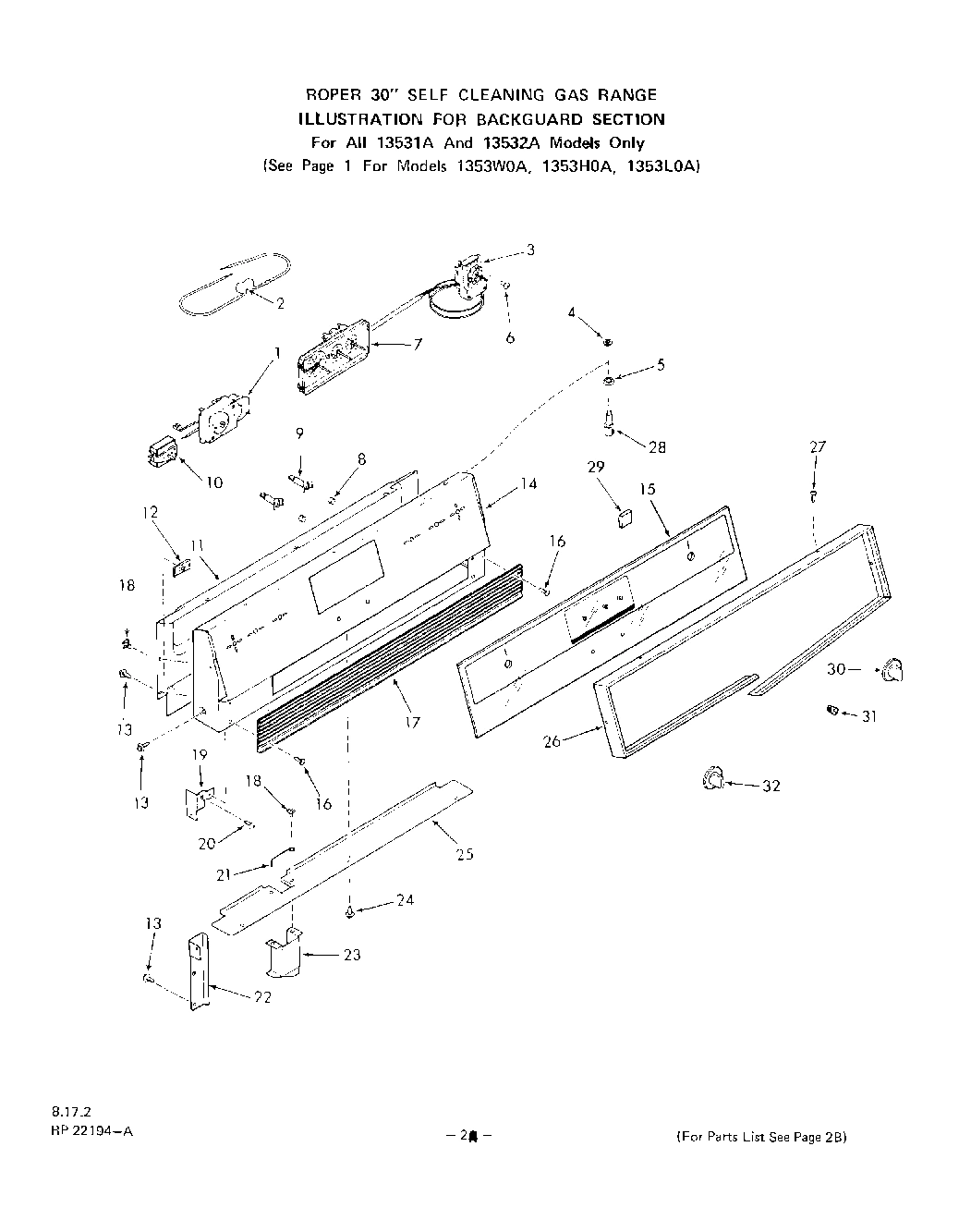

01 - BACKGUARD
03 - MAIN TOP

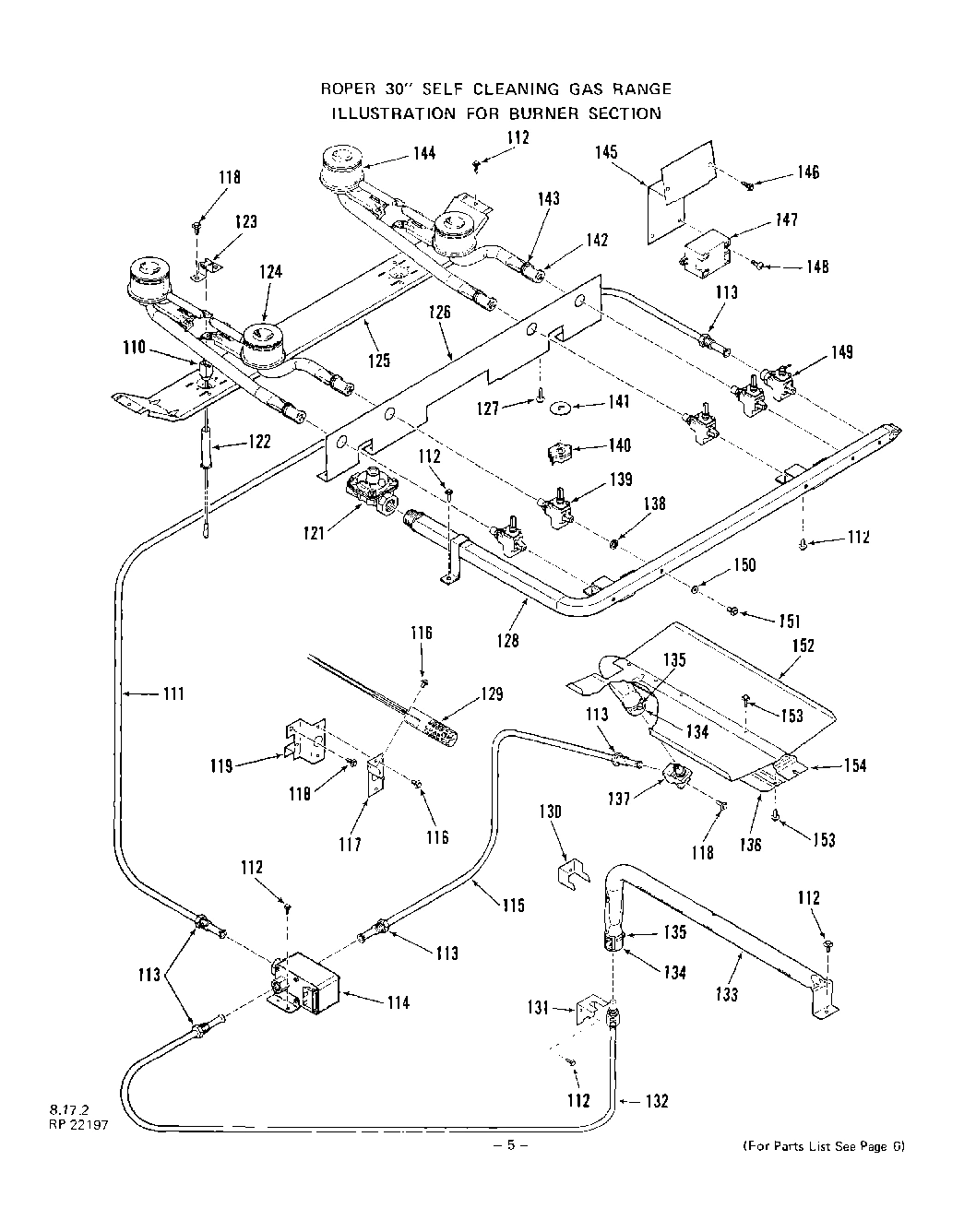

05 - BURNER
Common parts from model Whirlpool 1353^1A GAS RANGE
1
Timer WPL 281698 Contact Us For Availability
2
Wire Lead w/Resistor WPL 300326 Contact Us For Availability
3
Oven Thermostat (All 13531A Models) WPL 321524 Contact Us For Availability
3
Oven Thermostat (All 13532A Models) WPL 324156 Contact Us For Availability
4
Wire Connector (2 Required) WPL 66763 Contact Us For Availability
4
Knurled Nut WPL 87403 Contact Us For Availability
5
Clock w/1Hr Timer WPL 314101 Contact Us For Availability
5
Pal Nut WPL 236129 Contact Us For Availability
6
Indicator Light WPL 231665 Contact Us For Availability
6
Screw 8-32x3/16`` WPL 78565 Contact Us For Availability
7
Clock w/1 Hr. Timer WPL 322305 Contact Us For Availability
8
Lens-Indicator Light WPL 233161 Contact Us For Availability
9
Indicator Light (2 Required) WPL 288247 Contact Us For Availability
10
Selector Switch WPL 321248 Contact Us For Availability
11
Wire Cover-Backguard WPL 312055 Contact Us For Availability
11
Wire Cover-Backguard WPL 322943 Contact Us For Availability
12
Speed Nut 10 - 32 WPL 108069 Contact Us For Availability
14
Crosstie (White) WPL 322272 Contact Us For Availability
14
Crosstie (Golden Wheat) WPL 322273 Contact Us For Availability
14
Crosstie (Almond) WPL 322274 Contact Us For Availability
14
Crosstie (White) WPL 322396 Contact Us For Availability
14
Crosstie (Golden Wheat) WPL 322397 Contact Us For Availability
14
Crosstie (Almond) WPL 322398 Contact Us For Availability
15
Glass-Backguard WPL 311141 Contact Us For Availability
15
Backguard Glass WPL 322350 Contact Us For Availability
16
Screw 6-32 x 3/8`` WPL 303820 Contact Us For Availability
17
Bottom Trim-Crosstie WPL 322091 Contact Us For Availability
18
Clip WPL 70588 Contact Us For Availability
19
Bracket-Backguard (Left) WPL 293565 Contact Us For Availability
19
Bracket-Backguard (Right) WPL 293566 Contact Us For Availability
19
Bracket-Backguard (Left) WPL 322172 Contact Us For Availability
19
Bracket-Backguard (Right) WPL 322174 Contact Us For Availability
21
Wire Retainer WPL 239225 Contact Us For Availability
22
Support-Backguard (Lt. or Rt.) WPL 299575 Contact Us For Availability
22
Support-Backguard (Right) WPL 322566 Contact Us For Availability
22
Support-Backguard (Left) WPL 322567 Contact Us For Availability
23
Wire Shield-Backguard WPL 286889 Contact Us For Availability
25
Shield-Controls WPL 307599 Contact Us For Availability
26
Bezel-Backguard WPL 308007 Contact Us For Availability
27
Screw 6-32x3/8`` WPL 295268 Contact Us For Availability
28
Push Switch (Lock-Unlock) WPL 307574 Contact Us For Availability
28
Knob-Oven Thermostat WPL 321068 Contact Us For Availability
29
Nut-Trim 3/8-27 WPL 109883 Contact Us For Availability
29
Spacer-Backguard Glass (4 Req) WPL 322302 Contact Us For Availability
30
Knob-Selector Switch WPL 321067 Contact Us For Availability
30
Knob-Thermostat WPL 322462 Contact Us For Availability
31
Knob-Clock (Start & Stop Time) (3) WPL 109225 Contact Us For Availability
32
Knob-Selector Switch WPL 322463 Contact Us For Availability
44
Top Grate (4 Required) WPL 316786 Contact Us For Availability
45
Spill Bowl (4 Required) WPL 310385 Contact Us For Availability
46
Main Top (White) WPL 316788 Contact Us For Availability
46
Main Top (Almond) WPL 316789 Contact Us For Availability
46
Main Top (Golden Wheat) WPL 316790 Contact Us For Availability
47
End Cap (Left) WPL 302660 Contact Us For Availability
47
End Cap (Right) WPL 302661 Contact Us For Availability
49
Cover-Lock Rod WPL 321301 Contact Us For Availability
50
Rear Support-Main Top (All 13530A Models) WPL 310575 Contact Us For Availability
50
Rear Support-Main Top (All Models Except 1353 WPL 322961 Contact Us For Availability
51
Burner Box Bottom WPL 320740 Contact Us For Availability
52
Front Extension-Burner Box Bottom WPL 320841 Contact Us For Availability
53
Plug Button WPL 239831 Contact Us For Availability
54
Cover-Lock WPL 310418 Contact Us For Availability
56
Manifold Panel WPL 321502 Contact Us For Availability
57
Knob-Gas Valve (4 Required) (All 13531A & 2A WPL 320909 Contact Us For Availability
57
Knob-Gas Valve (4 Required) (All 13530A Model WPL 321065 Contact Us For Availability
58
Extension-Burner Box Bottom (Left) WPL 320837 Contact Us For Availability
58
Extension-Burner Box Bottom (Right) WPL 320839 Contact Us For Availability
59
Baffle-Burner Box Bottom (Rt. or Lt.) WPL 320753 Contact Us For Availability
60
Support Rod-Main Top (All 13530A Models) WPL 284164 Contact Us For Availability
60
Support Rod-Main Top (All 13531A & 2A Models) WPL 307443 Contact Us For Availability
61
Trim-Main Top (Left-All 13531A & 2A Models) WPL 305381 Contact Us For Availability
61
Trim-Main Top (Right-All 13531A & 2A Models) WPL 305382 Contact Us For Availability
79
Spacer (2 Required) WPL 310419 Contact Us For Availability
80
Bracket w/Switch WPL 319432 Contact Us For Availability
81
Mounting Screw WPL 319433 Contact Us For Availability
82
Screw 10 - 32 x 3/8`` WPL 102429 Contact Us For Availability
83
Solenoid Only WPL 319431 Contact Us For Availability
84
Cotter Pin WPL 318089 Contact Us For Availability
85
Spring-Solenoid WPL 299704 Contact Us For Availability
86
Rod-Oven Door Lock WPL 310555 Contact Us For Availability
88
Spring-Lock Handle WPL 299599 Contact Us For Availability
89
Knob-Oven Door Lock Handle WPL 299627 Contact Us For Availability
90
Screw 6-32x15/32`` WPL 313768 Contact Us For Availability
91
Oven Door Lock Assem (Inc Key 88) WPL 310532 Contact Us For Availability
92
Washer WPL 106462 Contact Us For Availability
93
Screw 10-32x7/16`` WPL 316365 Contact Us For Availability
110
Electrode-Spark Igniter (Right) WPL 312454 Contact Us For Availability
110
Electrode-Spark Igniter (Left) WPL 313629 Contact Us For Availability
111
Tubing 3/8``-Shut Off Valve to Control Valve WPL 310903 Contact Us For Availability
111
Tubing 3/8``-Shut Off Valve to Control Valve WPL 323401 Contact Us For Availability
113
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
114
Dual Control Valve WPL 306267 Contact Us For Availability
115
Tubing 3/8``-Control Valve to Broiler Burner WPL 310905 Contact Us For Availability
117
Bracket-Igniter (Oven or Broiler Burner) WPL 311689 Contact Us For Availability
119
Bracket-Igniter (Oven Burner) WPL 310497 Contact Us For Availability
121
Pressure Regulator WPL 314056 Contact Us For Availability
122
Spacer-Lt. or Rt. WPL 320844 Contact Us For Availability
123
Bracket-Spark Igniter (Lt. or Rt.) WPL 312453 Contact Us For Availability
124
Front Top Burner-Lt. or Rt. (Inc`s 142 & 143) WPL 310198 Contact Us For Availability
125
Support-Top Burner WPL 312452 Contact Us For Availability
126
Wire Shield-Gas Valve WPL 320744 Contact Us For Availability
127
Screw 10-32x3/8`` WPL 239113 Contact Us For Availability
128
Manifold Pipe WPL 320742 Contact Us For Availability
129
Igniter-Oven or Broiler Burner WPL 319887 Contact Us For Availability
130
Support-Oven Burner WPL 282122 Contact Us For Availability
131
Bracket-Orifice Fitting WPL 282112 Contact Us For Availability
132
Tubing 3/8`` w/Orifice WPL 312076 Contact Us For Availability
133
Oven Burner (Inc`s 134 & 135) WPL 318449 Contact Us For Availability
134
Air Shutter WPL 312988 Contact Us For Availability
135
Adjustment Screw -Air Shutter WPL 312989 Contact Us For Availability
136
Lower Baffle - Broiler Burner WPL 302904 Contact Us For Availability
137
Broiler Orifice Fitting WPL 311981 Contact Us For Availability
138
Silicone Rubber Gasket WPL 313563 Contact Us For Availability
139
Gas Valve-4 Req. (Inc.`s. 138) (All 13531A & WPL 313224 Contact Us For Availability
139
Gas Valve-4 Req. (Inc.`s. 138) (All 13530A Mo WPL 313262 Contact Us For Availability
140
Switch-Gas Valve (4 Required) (All 13531A & 2 WPL 310253 Contact Us For Availability
140
Switch WPL 312457 Contact Us For Availability
141
WPL 306589 WPL 306589 Contact Us For Availability
142
WPL 301910 WPL 301910 Contact Us For Availability
143
WPL 301911 WPL 301911 Contact Us For Availability
144
WPL 310199 WPL 310199 Contact Us For Availability
145
WPL 310527 WPL 310527 Contact Us For Availability
147
WPL 320990 WPL 320990 Contact Us For Availability
148
WPL 105667 WPL 105667 Contact Us For Availability
149
WPL 312437 WPL 312437 Contact Us For Availability
150
WPL 314241 WPL 314241 Contact Us For Availability
151
WPL 311455 WPL 311455 Contact Us For Availability
152
WPL 300263 WPL 300263 Contact Us For Availability
153
WPL 97217 WPL 97217 Contact Us For Availability
154
WPL 318758 WPL 318758 Contact Us For Availability
165
Range Service Cord WPL 235822 Contact Us For Availability
166
Disconnect WPL 232150 Contact Us For Availability
167
Wire Cover WPL 310579 Contact Us For Availability
168
Stiffener - Body Side (Lt. or Rt.) WPL 309986 Contact Us For Availability
170
Lower Support - Body Side (Right) WPL 293420 Contact Us For Availability
170
Lower Support - Body Side (Left) WPL 293421 Contact Us For Availability
171
Lockwasher WPL 69648 Contact Us For Availability
173
Oven Door Hinge - Lt. or Rt. (Inc. Key 175) WPL 293971 Contact Us For Availability
174
Spring - Oven Door (Lt. or Rt.) WPL 308839 Contact Us For Availability
175
Shoulder rivet WPL 293224 Contact Us For Availability
176
Hinge Bracket w/Roller (Inc. Key 175) (Left) WPL 301389 Contact Us For Availability
176
Hinge Bracket w/Roller (Inc. Key 175) (Right) WPL 301390 Contact Us For Availability
177
Screw 8ABx3/4`` WPL 282634 Contact Us For Availability
179
Body Side - Lt. or Rt. (Inc. Key 229) (White) WPL 321920 Contact Us For Availability
179
Body Side - Lt. or Rt. (Inc. Key 229) (Golden WPL 321923 Contact Us For Availability
179
Body Side - Lt. or Rt. (Inc. Key 229) (Almond WPL 321924 Contact Us For Availability
180
Bumper WPL 301769 Contact Us For Availability
181
Baffel-Side Panel (Lt or Rt) WPL 311029 Contact Us For Availability
182
Upper Insulation Retainer-Lt. WPL 322075 Contact Us For Availability
183
Insulation-Oven Top & Sides WPL 282953 Contact Us For Availability
184
Cover-Flue Deflector WPL 310577 Contact Us For Availability
185
Flue Deflector WPL 294197 Contact Us For Availability
186
Gasket-Flue Deflector WPL 282157 Contact Us For Availability
187
Main Back WPL 312014 Contact Us For Availability
188
Insulation Retainer - Flue WPL 282156 Contact Us For Availability
189
Insulation-Oven Back WPL 282535 Contact Us For Availability
190
Cover Plate, Rotisserie WPL 229607 Contact Us For Availability
191
Oven Back WPL 312013 Contact Us For Availability
192
Shoulder Bolt WPL 289730 Contact Us For Availability
193
Cover Plate WPL 282245 Contact Us For Availability
195
Oven Side-Left WPL 285482 Contact Us For Availability
196
Access Plate WPL 321274 Contact Us For Availability
197
Bottom-Oven Burner WPL 321272 Contact Us For Availability
198
Main Bottom WPL 319808 Contact Us For Availability
199
Base w/Levelers (Lt. or Rt.) WPL 310964 Contact Us For Availability
210
Retainer - Seal WPL 295277 Contact Us For Availability
212
Seal WPL 295278 Contact Us For Availability
213
Strike (2 Required) WPL 313671 Contact Us For Availability
214
Sc WPL 321162 Contact Us For Availability
215
WPL 71003 WPL 71003 Contact Us For Availability
216
WPL 282118 WPL 282118 Contact Us For Availability
217
WPL 97220 WPL 97220 Contact Us For Availability
218
WPL 282127 WPL 282127 Contact Us For Availability
219
WPL 283457 WPL 283457 Contact Us For Availability
220
WPL 305361 WPL 305361 Contact Us For Availability
221
WPL 306149 WPL 306149 Contact Us For Availability
221
WPL 306150 WPL 306150 Contact Us For Availability
222
WPL 288392 WPL 288392 Contact Us For Availability
223
WPL 322073 WPL 322073 Contact Us For Availability
224
WPL 237762 WPL 237762 Contact Us For Availability
225
WPL 285860 WPL 285860 Contact Us For Availability
226
WPL 282102 WPL 282102 Contact Us For Availability
227
WPL 282273 WPL 282273 Contact Us For Availability
228
WPL 282278 WPL 282278 Contact Us For Availability
229
WPL 239603 WPL 239603 Contact Us For Availability
230
WPL 294195 WPL 294195 Contact Us For Availability
231
WPL 281574 WPL 281574 Contact Us For Availability
232
WPL 100576 WPL 100576 Contact Us For Availability
234
WPL 321919 WPL 321919 Contact Us For Availability
235
WPL 304125 WPL 304125 Contact Us For Availability
237
WPL 282952 WPL 282952 Contact Us For Availability
239
WPL 311514 WPL 311514 Contact Us For Availability
239
WPL 311517 WPL 311517 Contact Us For Availability
239
WPL 311518 WPL 311518 Contact Us For Availability
240
WPL 21067 WPL 21067 Contact Us For Availability
241
WPL 310218 WPL 310218 Contact Us For Availability
250
Outer Door Glass WPL 319297 Contact Us For Availability
251
Fastener (7 Required) WPL 300007 Contact Us For Availability
252
Insulation Retainer WPL 304129 Contact Us For Availability
253
Insulation-Oven Door Lining WPL 304128 Contact Us For Availability
254
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
255
Lockwasher WPL 109156 Contact Us For Availability
256
Screw 10-32 x 1/2`` WPL 102376 Contact Us For Availability
259
Plug-Oven Door Lining WPL 320678 Contact Us For Availability
260
Gasket-Oven Door WPL 282441 Contact Us For Availability
261
Screw 10-32x2-1/2`` WPL 318930 Contact Us For Availability
263
Stiffener-Oven Door Lining WPL 282090 Contact Us For Availability
264
Insulation-Oven Door Plug WPL 321930 Contact Us For Availability
265
Lining-Oven Door WPL 304102 Contact Us For Availability
267
Screw 10-32x1`` WPL 313190 Contact Us For Availability
268
Shield-Oven Door Lining WPL 310916 Contact Us For Availability
269
Front Panel-Oven Door (White) WPL 316391 Contact Us For Availability
269
Front Panel-Oven Door (Golden Wheat) WPL 316394 Contact Us For Availability
269
Front Panel-Oven Door (Almond) WPL 316395 Contact Us For Availability
270
Top Frame-Oven Door Glass WPL 319294 Contact Us For Availability
271
Spacer (3 Required) WPL 107158 Contact Us For Availability
272
Cushion (6 Required) WPL 112370 Contact Us For Availability
273
Frame-Oven Door Glass WPL 319292 Contact Us For Availability
274
Handle-Oven Door WPL 316398 Contact Us For Availability
× ![]()
